EXO
Perform shaft alignments in hazardous area with the EXO.
Our core values, GuideU and Alignment Intelligence, have led to the development of several first industry functions, where True Live and VertiZontal Moves™ are unique on the market for laser-based shaft alignment tools. They bring ease of use to our end users, which above all facilitates easy precision shaft alignment, on-the-job time saving, improved reliability, and more importantly, money savings.
With the Acoem EXO, you get all this in an intrinsically safe shaft alignment package.
Features
HORIZONTAL ALIGNMENT
Measures and helps correct misalignment while dual sensors maintain the true position of the shafts, even as unintended movements are experienced during the alignment process
VERTICAL ALIGNMENT
Same power and ease of use as the Horizontal Alignment program. The vertical alignment program is used when aligning flanged-mounted machines
VERTI-ZONTAL
Allows for the vertical and horizontal adjustments to be made together in one pass, saving valuable time and ensuring accuracy the first time around
SOFTCHECK™
The Softcheck™ routine helps control for soft foot conditions. The EVO allows the user to go directly from Softcheck™ to measuring shaft alignment
FEETLOCK™
This program allows the user to test alternate solutions in situations where the movable machine is base bound or bolt bound
TARGET VALUES
Allows the system to compensate for pre-determined alignment targets. The user can establish targets using the function and then go directly to shaft alignment
TRUE LIVE
Deliver live measurement values showing the machine’s exact position. Did you interrupt the laser beam? Or move the machine’s position out of detector range? Not a problem, our smart sensors will resume with an updated machine position and always deliver live values to you
PDF REPORTING
Fast on site reporting available converting saved measurement reports into PDF files
MOBILE CONNECTIVITY
Integrated Wi-Fi, Bluetooth, and camera
See our technology in action.
Schedule a free demo to get a first-hand look at how our solutions support your business.

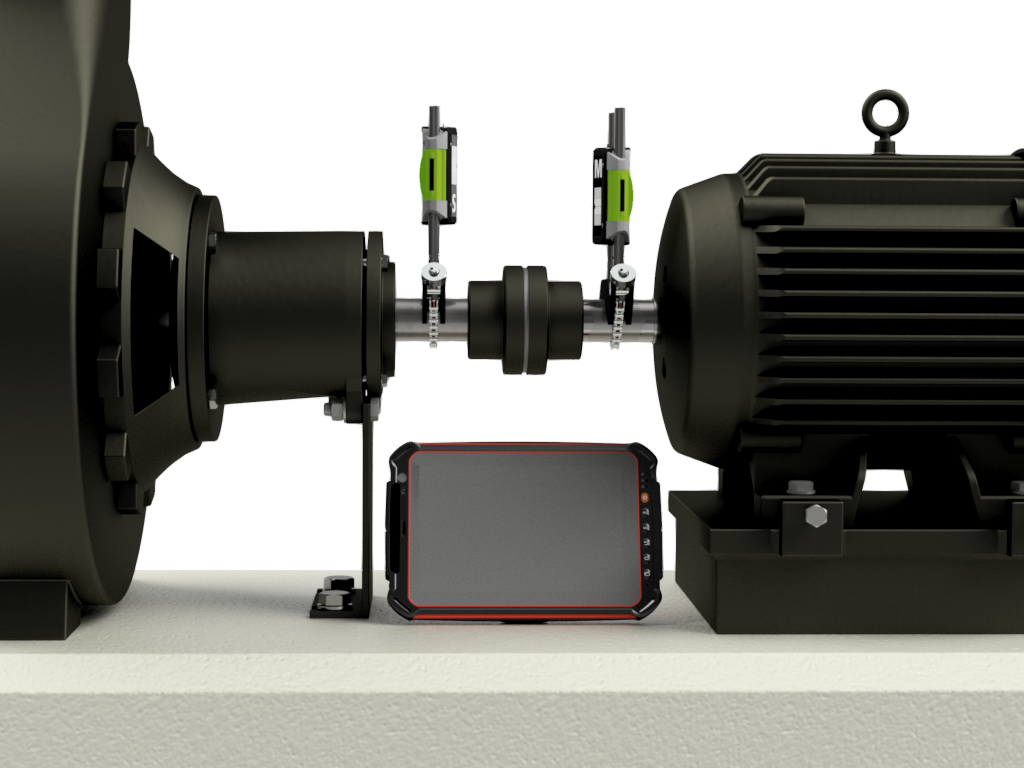

You always know your machine’s position with the EXO
Industry-leading EX certified smart sensors
- Integrated Bluetooth for wireless communication between the display unit and smart sensors
- 30 mm digital sensor detector + line laser eliminates rough alignment, which results in a short setup time
- Built-in dual inclinometers to detect backlash and obtain angular values during measurement in horizontal alignment
- Thinnest smartsensors on the market
- Premounted fixtures give a short setup time
- Instant battery check – in both onand off mode
- II 3G Ex ic op isIIC T4 Gc
GuideU : our graphical user interface, your alignment guide
Our patented icon- and app-based, and color-coded user interface, GuideU, makes it easy to measure, align, and document each job. In order to minimize the risk of operator errors, we developed an adaptive user interface for the EXO system. It guides the user throughout the job in logical and easy-to-follow steps. It will deliver measurement and correction values based on what the system finds during the alignment process.
This eliminates confusion for less-experienced users and provides ease of access throughout a measurement with the EXO system. To add to the enhanced user experience, we have given the interface a game-like 3D graphic look facilitating the unmistakable interpretation of any misalignment error.
Our icon-driven, language-free alignment systems produce measurement reports easily understood by all users, regardless of their language.
What’s included
- Tablet EX – ATEX/IECEx Zone 2 certified including ruggedized IP68 tablet device

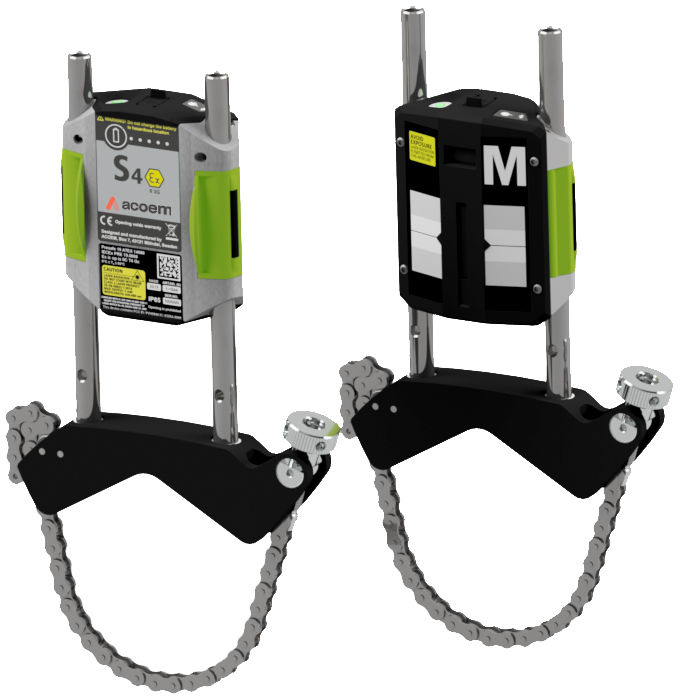

- M4 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- S4 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- EXO V brackets, including 4-85mm rods and 2-160mm chains
- Carrying case – IP-65, high impact ABS
- EVO tape measure
- USB stick
- Manual – EXO
- Lifetime warranty standard
Vertizontal Moves™
Measure Once, Move in Two Directions
AT-300 featuring the core of Acoem expertise in alignment technologies :
Gulfsiz GuideU™
Effortlessly navigate through our user-friendly interface, GuideU™, designed to make it a breeze to follow and understand.
Gulfsiz True Live™
Real-Time Positioning and Reporting with Acoem True Live™ Feature. Get the position of both the shafts in real-time with Acoem True Live™ feature, ensuring accurate and timely measurements.
Gulfsiz Cloud
Centralize and share your reports with your team, consolidate your plant’s alignment status, and assign alignment work orders to team members.
Safeguard your maintenance team and production
Our core values have led to the development of several first industry functions, where True Live and VertiZontal™ Moves are unique on the market for laser-based shaft alignment tools. They bring an ease of use to our end users, which above all facilitates easy precision shaft alignment, on-the-job time saving, improved reliability and most importantly, money savings. With the Acoem EXO, you get all this in an intrinsically safe shaft alignment package.
